48V/24V/12V DC/DC Converters — Ultrathin, 1 A DIN Rail

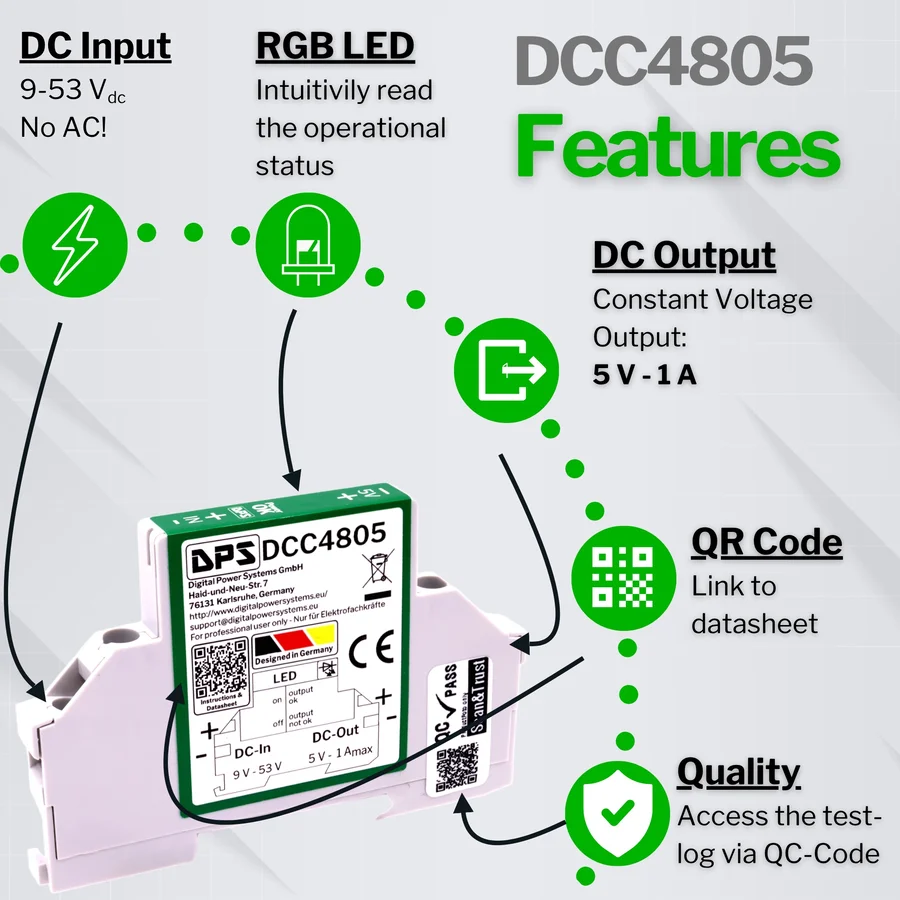

The DCC4805 delivers a regulated 5 V from a 48 V rail in only 8.8 mm of DIN rail — with 12 V and 24 V variants for any control cabinet.
- 8.8 mm wide DIN rail
- 1 A output current
- Reverse & short protected
Why the DCC4805 family fits more power into less space

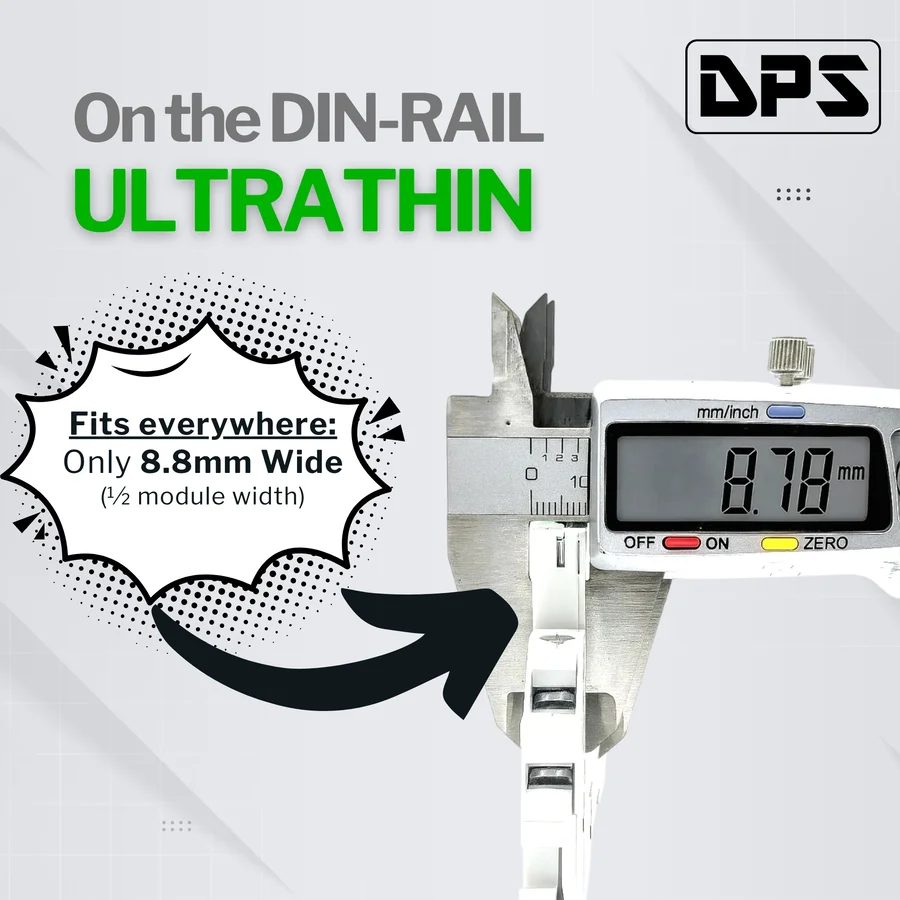

8.8 mm width: double your cabinet density
Pack more I/O and control modules without a larger enclosure. At just 8.8 mm wide, the DCC4805 occupies half the space of typical DC/DC converters. Distribute auxiliary power exactly where you need it, without sacrificing rail real estate.
48 V input — flexible for mixed-voltage buses
Run from 12 V, 24 V, or 48 V DC rails without a redesign. The wide input range (Uout+4 V to 48 V) means the same converter works across multiple cabinet generations. The 12 V and 24 V output variants cover the three most common auxiliary voltages.
Built‑in protection keeps your machines online
Reverse polarity, short circuits, and transients won't take down the rail. The DCC4805 accepts a miswired input up to -48 V without damage, tolerates indefinite output shorts, and clamps moderate input transients with an internal TVS diode. Fewer field failures, fewer truck rolls.
Power Good LED: diagnostics in seconds
Confirm output regulation with one glance. The front-panel green LED lights when the output is in spec, eliminating voltmeter checks. Spot a failed module instantly in a crowded panel.
Standardize your auxiliary voltage — one form factor, three outputs
All three converters share the same 8.8 mm DIN-rail footprint, so no layout changes are needed when you switch output voltages. Choose the variant that matches your control voltage.
| Parameter | DCC4805 | DCC4812 | DCC4824 |
|---|---|---|---|
| Output Voltage | 5 V (4.8–5.6 V) | 12 V (11.8–12.6 V) | 24 V (23.7–24.8 V) |
| Output Tolerance (dynamic) | ±2% typ. | ±2% typ. | ±2% typ. |
| Min Input at 1 A | 9 V | 16 V | 28 V |
| Max Input Voltage | 48 V (53 V abs.) | 48 V (53 V abs.) | 48 V (53 V abs.) |
| Typical Efficiency (at nominal) | 92% @ 10 V in | 96% @ 15 V in | 97% @ 30 V in |
| Protection | Reverse-polarity, short-circuit, open-circuit safe, TVS clamping |
Download the datasheet for full specifications. STEP 3D model.
We offer competitive volume pricing with quantity discounts — check the live pricing widget below for your specific order volume.
FAQ
What is the valid input voltage range, and does it change with load?
Yes — the minimum input voltage depends on load. At full load (1 A) the input must be at least U_out + 4 V; at no load U_out + 2 V is sufficient. Nameplate U_in,max is 48 V (absolute max 53 V per spec table). So a DCC4812 needs ≥16 V at 1 A, a DCC4824 needs ≥28 V — a 24 V bus cannot drive the DCC4824 at full load.
What output voltages are available across the family, and how accurate are they?
Three fixed variants: DCC4805 outputs 5 V (4.8–5.6 V), DCC4812 outputs 12 V (11.8–12.6 V), DCC4824 outputs 24 V (23.7–24.8 V). Output voltage tolerance is ±2 % dynamic typical, with solid voltage stability across the full 0–1 A output current range.
What protection mechanisms are built in?
Four protections are listed: reverse-polarity input to -48 V DC, indefinite short-circuit, open-circuit safe operation, and an input TVS diode (1SMA4758A) clamping input transients. The datasheet does not mention a separate output OVP or a thermal shutdown — at 1 A continuous above 30 °C ambient, add airflow or derate to ≤0.3 A.
How is output current capability derated at higher ambient temperatures?
At full load (1 A) the operating range is -40 °C to +30 °C. Reducing the load to 0.3 A or below extends the range to the full -40 °C to +50 °C. The datasheet doesn't specify an active thermal shutdown, so thermal management above 30 °C at full load is the user's responsibility.
What is the efficiency, and how does input voltage affect it?
Peak efficiency exceeds 90 % above 300 mA on the 12 V and 24 V variants. From the efficiency curves: DCC4824 ~97 % at U_in = 30 V, ~94 % at U_in = 48 V. DCC4812 ~96 % at U_in = 15 V, ~91 % at U_in = 48 V. DCC4805 ~92 % at U_in = 10 V, ~84 % at U_in = 48 V. Lower input-to-output ratios are more efficient. Run above 200 mA for best results.
Can the output voltage, current limit, or protection thresholds be customised?
Yes — DPS customises output voltage, current limit, and TVS protection thresholds for production volumes. An engineering fee applies; contact DPS to scope your variant. Standard catalogue variants (5 V, 12 V, 24 V) ship from stock.
