HDR20-15-30
Datasheet| Quantity | Unit Price (incl. VAT) | Unit Price (excl. VAT) | Saving |
| 1+ | EUR 39.98 | EUR 33.60 | — |
| 10+ | EUR 36.18 | EUR 30.40 | -10% |
| 25+ | EUR 33.55 | EUR 28.19 | -16% |
| 100+ | EUR 30.75 | EUR 25.84 | -23% |
| 500+ | EUR 29.39 | EUR 24.70 | -26% |
| More Quantity, More Savings. Please Quote! | |||
Key Features
- 18 mm DIN Rail width
- <100 mW Standby Power @ Vout = 24 V
- High efficiency up to 86 %
- Long life / Electrolytic capacitor free
- Output Voltage selectable by switch:
- 15 Vdc - 1.34 A dc,max
- 24 Vdc - 0.84 A dc,max
- 30 Vdc - 0.67 A dc,max
- 207 Vac to 253 Vac input voltage range
- Output short circuit proof
- Active output overvoltage Protection
- Green Power LED
Product Description

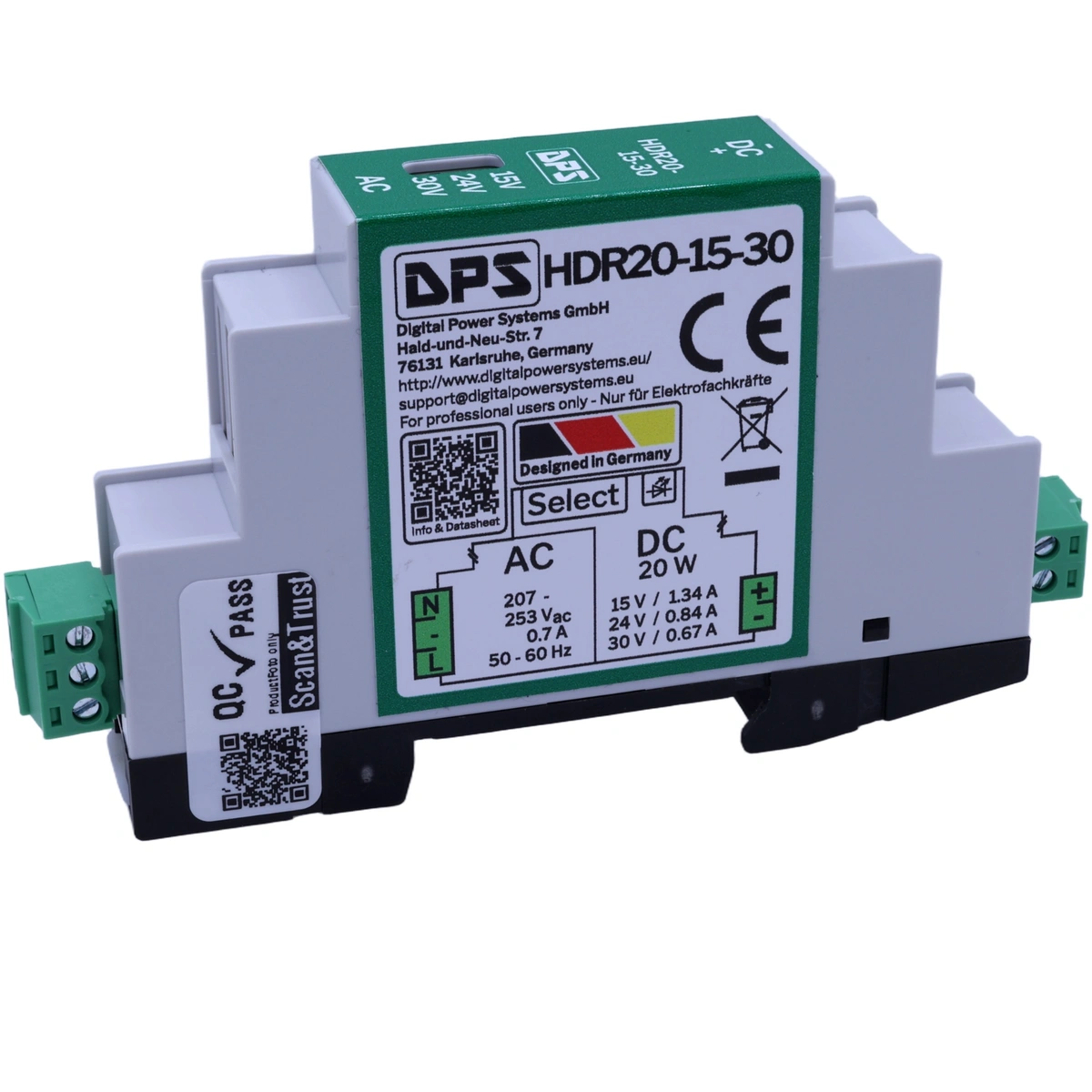

The HDR20-15-30 is 230V ac power supply for DIN RAIL control cabinets. The output voltage is selectable by switch to 15 V @ 1.34 A max, 24 V @ 0.84 A max and 30 V @ 0.67 A max. Thanks to the no electrolytic capacitor (NoElko) technology, exceptional reliability is achieved. An active output overvoltage protection with overheating protection discharges the output on overvoltage conditions.
The device is resilient to typical operating failures: Input transient protection, output short circuit, open circuit, moderate input transients and moderate output transients. A green power led indicates stable operation. The device delivers full rated power at ambient temperatures from -40°C to 50°C, without derating. The device might emit switching noise when operated in standby.
Technical data
Check the specifications below to filter for products with matching attributes.
| 0 to 1.34 A | |
| 15 to 30 V | |
| 20 W | |
| 86 % |
Logistics Data
| GTIN / EAN | 4262542250046 |
| Weight | 0.07 kg |
| Dimensions | 18 x 106 x 51 mm |
| Country of Origin | Germany |
| HS Code | 8504409590 |
| Manufacturer | Digital Power Systems GmbH |
| Address | Bruchsaler Str. 18, 68753 Waghäusel-Kirrlach, Deutschland |
| shop@digitalpowersystems.eu | |
| Website | https://digitalpowersystems.eu |
Do you need support?
Have a question about this product? Our engineering team is here to help.
Three voltages selectable by switch: 15 V at up to 1.34 A, 24 V at up to 0.84 A, and 30 V at up to 0.67 A. All three settings share the same 20 W power budget, so current limits scale inversely with voltage.
Yes — the datasheet calls out "exceptional reliability" thanks to the NoElko (no-electrolytic-capacitor) construction. Electrolytic capacitors are the primary ageing component in conventional switching supplies; removing them eliminates that wear-out mode.
Typically 89 mW at the 24 V setting; 54 mW at 15 V and 110 mW at 30 V, with no load and 230 V input (Figure 7).
Self-recovering, not latching. Overvoltage triggers active discharge through a 66 Ω resistor, rapidly pulling down the output rail. The discharge resistor is monitored by an NTC to prevent thermal overload. The supply returns to normal operation automatically once the overvoltage condition clears.
The input accepts 207 V to 253 V AC at 49–61 Hz; N and L pins are interchangeable. The datasheet explicitly notes that polarity can be swapped without affecting operation, which simplifies wiring in retrofit installations.
Applied standards: EN 55011 / CISPR 11 (Class A emissions), EN 61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-7 and -4-8 (EMC immunity and measurement), EN 61558-2-16 (safety) and EN IEC 63000 (RoHS documentation). The EU Declaration of Conformity covers the EMC (2014/30/EU), Low Voltage (2014/35/EU) and RoHS (2011/65/EU) directives.
No — regulation stays within roughly ±2 % of nominal across the full load range (Figure 2). The 24 V setting is the flattest (100.8 % → 99.7 %); the 15 V and 30 V curves sit slightly high at light load and settle toward nominal as current rises. Spec-table tolerances are wider: -4 % / +6 % at 15 V (14.4–15.9 V), ±4.2 % at 24 V, ±5 % at 30 V.
Yes — DPS customises output voltage, current limits, protection thresholds, and connectors for production volumes. An engineering fee applies; contact DPS to scope your variant.
