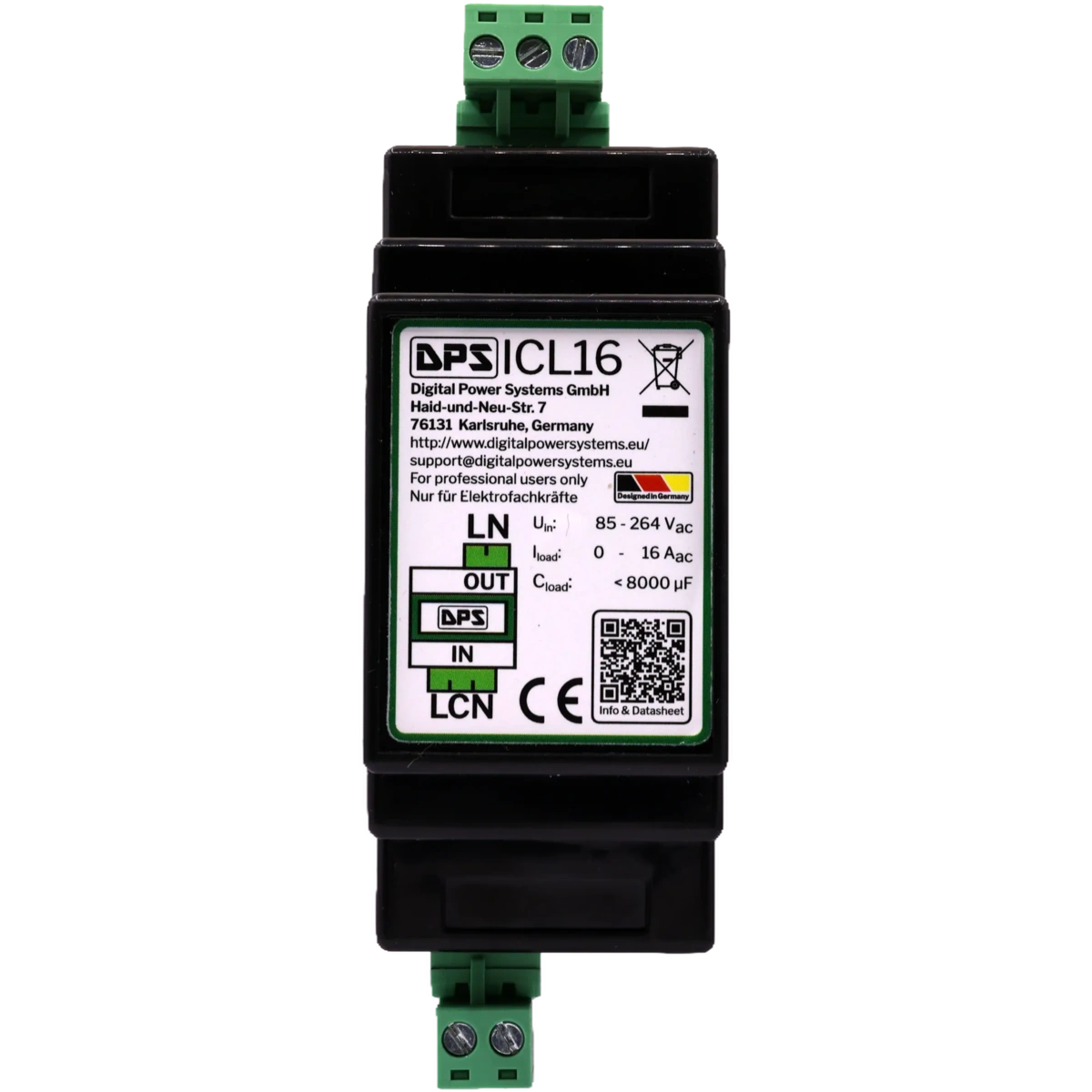

ICL16
Datasheet| Quantity | Unit Price (incl. VAT) | Unit Price (excl. VAT) | Saving |
| 1+ | EUR 59.49 | EUR 49.99 | — |
| 25+ | EUR 53.54 | EUR 44.99 | -10% |
| 100+ | EUR 47.59 | EUR 39.99 | -20% |
| More Quantity, More Savings. Please Quote! | |||
Payment on account available after approval · Payment Methods
Business customer? Register for net pricesKey Features
- Inrush current limitation to prevent erratic circuit breaker triggering
- Designed for B16/C16 circuit breakers
- Zero-voltage turn-on to minimise inrush current
- Capacitive load up to 8000 µF
- Input voltage range 85–264 V ac
- Control input for relay functionality
- NTC temperature supervisor
- Non-resettable thermal fuse
- Microcontroller controlled operation
- Programmable via MCU Tracer
Product Description
The ICL16 is an inrush current limiter for 85–264 V ac systems rated up to 16 A. It prevents erratic circuit breaker triggering caused by the high inrush currents of switch mode power supplies or PTC loads. The device combines a soft starter and a bypass relay in a single DIN Rail housing and is switched by an external control input.
Inrush current is limited by turning on at the AC zero crossing. After a programmable soft start time the relay engages and bridges the soft start resistors. An NTC sensor supervises the resistor temperature and inhibits the soft start while the resistors are too hot. A non-resettable thermal fuse disconnects the resistors permanently if that protection fails.
Timing and protection parameters are configurable over a 3.3 V serial interface. The device operates from -40 °C to 50 °C and tolerates a limited number of load-side short circuits.
Downloads
Logistics Data
| GTIN / EAN | 4262542250343 |
| Weight | 0.09 kg |
| Dimensions | 37 x 114 x 59 mm |
| Country of Origin | Germany |
| HS Code | 8536301000 |
| Manufacturer | Digital Power Systems GmbH |
| Address | Haid- und Neu Str. 7, 76131 Karlsruhe, Deutschland |
| shop@digitalpowersystems.eu | |
| Website | https://digitalpowersystems.eu |
Do you need support?
Have a question about this product? Our engineering team is here to help.
The ICL16 can turn on a capacitive load of up to 8000 µF. This is the maximum rated capacitance for operation over its 85–264 V AC input voltage range. The device limits inrush current by zero‑crossing turn‑on and a programmable soft‑start (default 200 ms), and is designed for use with B16/C16 circuit breakers.
Yes, resistive loads are fully supported. The ICL16 is designed for capacitive and resistive loads only; inductive loads are not supported. It can supply up to 16 A of continuous current, and resistive loads do not impose the 8000 µF capacitive limit that applies to capacitive loads.
The ICL16 is designed for B16 or C16 circuit breakers. The datasheet recommends a B16/C16 breaker as the input fuse. A breaker with a lower current rating may also be used. The upstream circuit breaker handles short-circuit protection, as the ICL16 is not a protective device.
Yes, the ICL16 is exactly designed for this. Connect the switch to the ICL16's Control input (C terminal) to activate the load. The switch then carries only the small control current – it does not conduct the 16 A load power – so the contacts will not arc or melt. The ICL16 handles the load current and provides a soft start that limits inrush current, preventing circuit breaker trips and further protecting the system. The control input operates over 85–264 V ac and the unit supports loads up to 16 A.
Yes, the ICL16 is programmable using the MCU Tracer software. Timing and protection parameters are configurable over a 3.3 V serial interface. For detailed programming instructions, refer to the datasheet or contact support for assistance.
