PM23
Datasheet| Quantity | Unit Price (incl. VAT) | Unit Price (excl. VAT) | Saving |
| 1+ | EUR 41.65 | EUR 35.00 | — |
| 25+ | EUR 39.27 | EUR 33.00 | -6% |
| 100+ | EUR 32.12 | EUR 26.99 | -23% |
| More Quantity, More Savings. Please Quote! | |||
Payment on account available after approval · Payment Methods
Business customer? Register for net pricesKey Features
- 3 channels, 2 A each
- up to 6 A with 3 channels in parallel
- System voltages from 5 V to 50 V
- Applications
- Redundancy
- Output current increase
- Ultrathin case, 8.8 mm width
- Input reverse polarity protection
- No electrolytic capacitors
- Operating temperature −40 °C to 50 °C (derating above 30 °C)
- Degree of protection IP20
Product Description

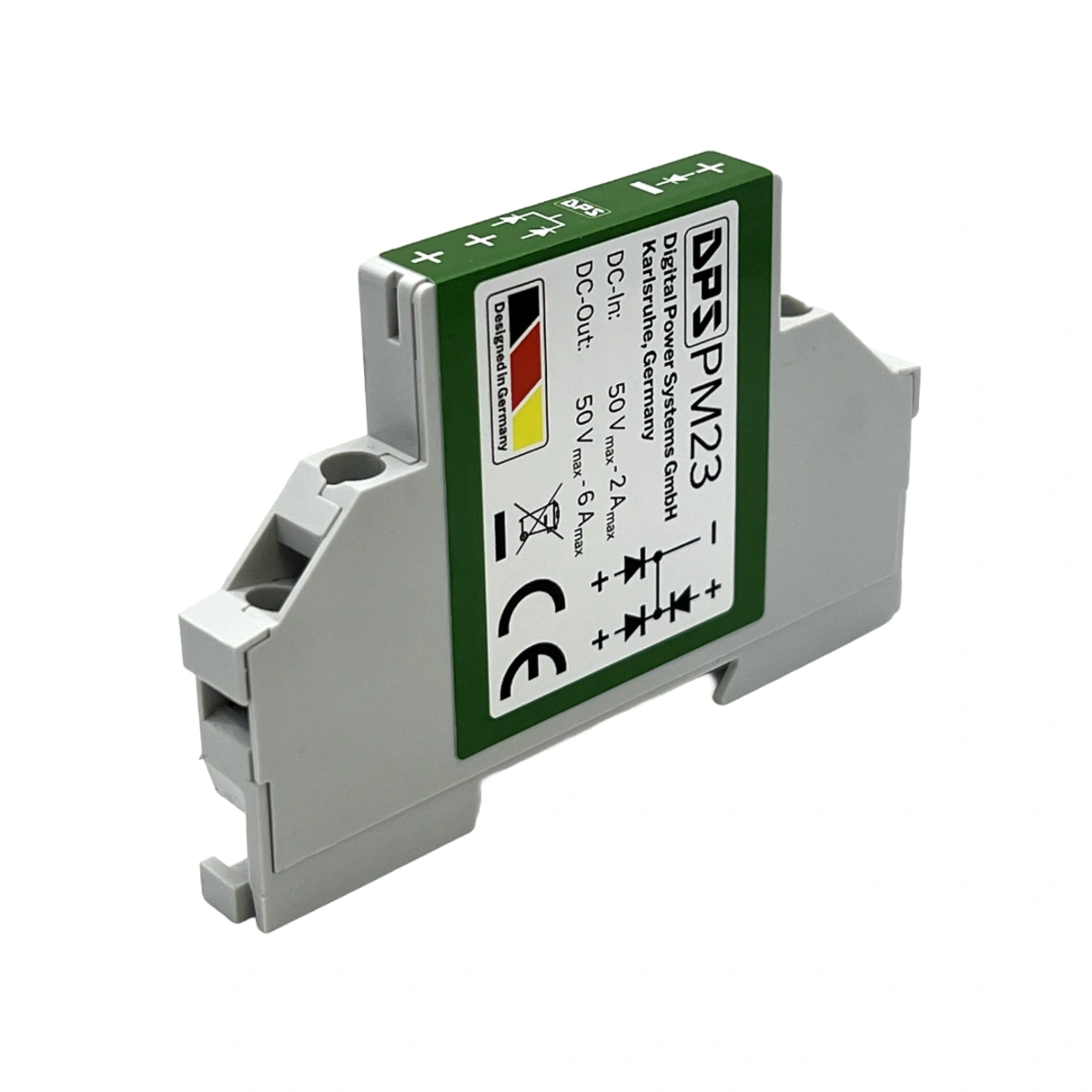

The PM23 is an 8.8 mm wide paralleling module based on 100 V Schottky diodes. It provides redundancy and output current increase for system voltages from 5 V to 50 V. It is designed for operation with AC/DC and DC/DC converters.
The device tolerates two typical operating faults: input reverse polarity and open circuit operation. It does not contain a fuse and provides no short circuit or over-temperature protection.
The operating temperature range is −40 °C to 50 °C. Derating is required above 30 °C.
Downloads
Logistics Data
| GTIN / EAN | 4262542250336 |
| Weight | 0.03 kg |
| Dimensions | 9 x 89 x 58 mm |
| Country of Origin | Germany |
| HS Code | 8504409590 |
| Manufacturer | Digital Power Systems GmbH |
| Address | Haid- und Neu Str. 7, 76131 Karlsruhe, Deutschland |
| shop@digitalpowersystems.eu | |
| Website | https://digitalpowersystems.eu |
Do you need support?
Have a question about this product? Our engineering team is here to help.
The PM23 uses 100 V Schottky diodes, not ideal diodes. As a non-ideal diode module, significant heat is produced at high output loads. If more power is required, paralleling diode strings is an option. The module provides three channels rated at 2 A each and can be paralleled for up to 6 A total. It supports system voltages from 5 V to 50 V and operates in a temperature range of −40 °C to 50 °C, with derating above 30 °C.
