RAIL-STICK
Datasheet| Quantity | Unit Price (incl. VAT) | Unit Price (excl. VAT) | Saving |
| 1+ | EUR 59.99 | EUR 50.41 | — |
| 10+ | EUR 56.53 | EUR 47.50 | -6% |
| 25+ | EUR 53.06 | EUR 44.59 | -12% |
| 100+ | EUR 46.14 | EUR 38.77 | -23% |
| More Quantity, More Savings. Please Quote! | |||
Key Features
- Ultrathin: 8.8 mm DIN rail width (1/2 TE)
- USB-C mass storage, FAT32
- Reversible USB-C connector
- Bus powered – no separate supply
- Galvanically isolated disable input (5 V – 50 V)
- Tamper loop for removal detection
- 32 GB storage capacity
- Green activity LED
- Screw terminals, no tools beyond a screwdriver
- Operating range 0 °C to 70 °C
Product Description

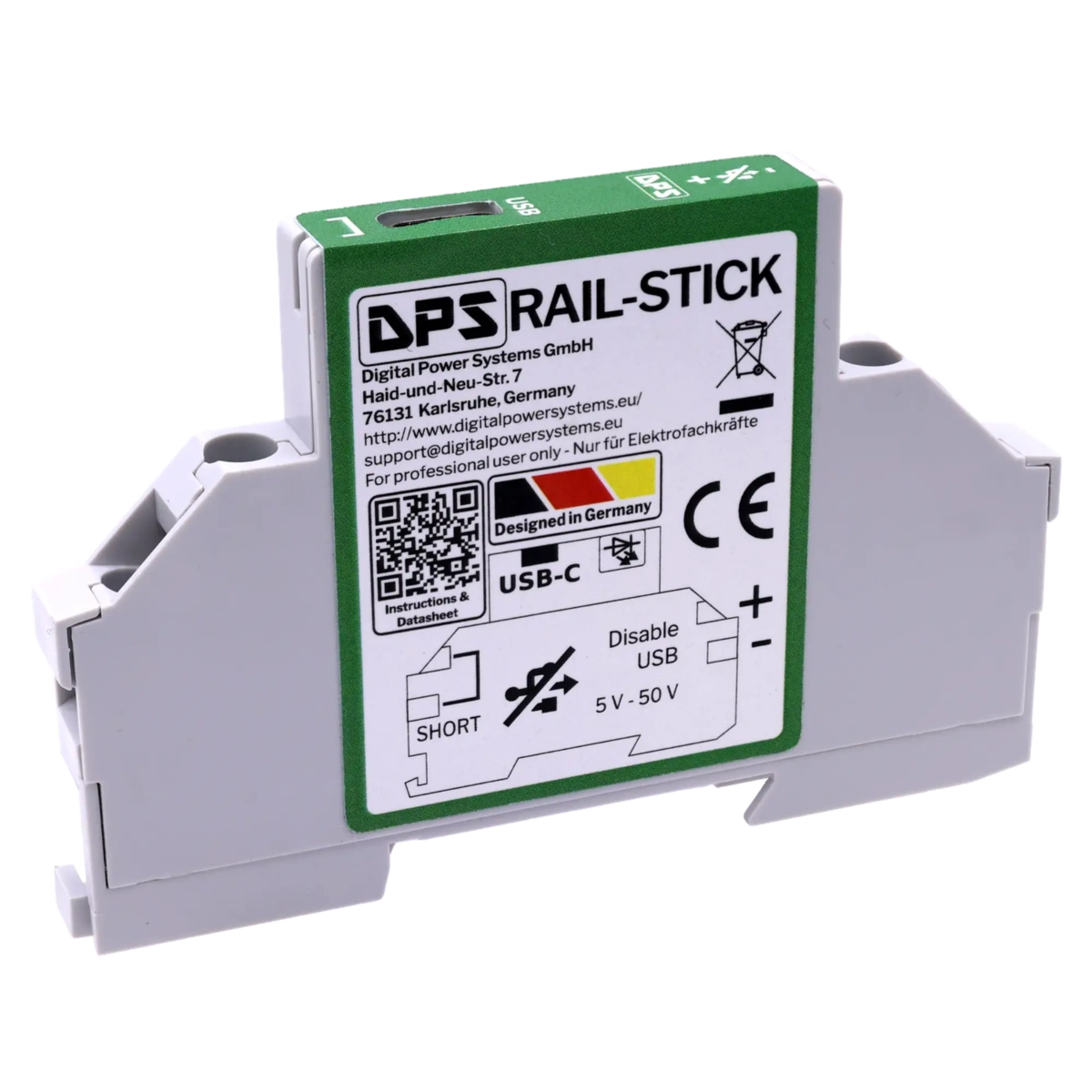

The RAIL-STICK (USB-C DIN Rail Memory Stick with Tamper Loop and Disable Input) is a USB mass storage device in a 8.8 mm (1/2 TE) DIN rail housing. It stores files inside the control cabinet, where a conventional USB stick has nowhere to sit: machine documentation, PLC backups, commissioning records or service data stay with the machine instead of with a person.
The USB-C receptacle on the front accepts the cable in either orientation. The device is bus powered and needs no separate supply. A green LED on the front indicates activity.
A galvanically isolated disable input between 5 V and 50 V suppresses the USB connection while energized, so the contents cannot be read while the machine is in a state that forbids it. A separate tamper loop runs through the device on its own terminals. Releasing them to take the device out of the cabinet breaks the loop, so a PLC input registers the removal.
Downloads
Logistics Data
| GTIN / EAN | 4262542250350 |
| Weight | 0.03 kg |
| Dimensions | 9 x 89 x 58 mm |
| Country of Origin | Germany |
| HS Code | 8523511000 |
| Manufacturer | Digital Power Systems GmbH |
| Address | Haid- und Neu Str. 7, 76131 Karlsruhe, Deutschland |
