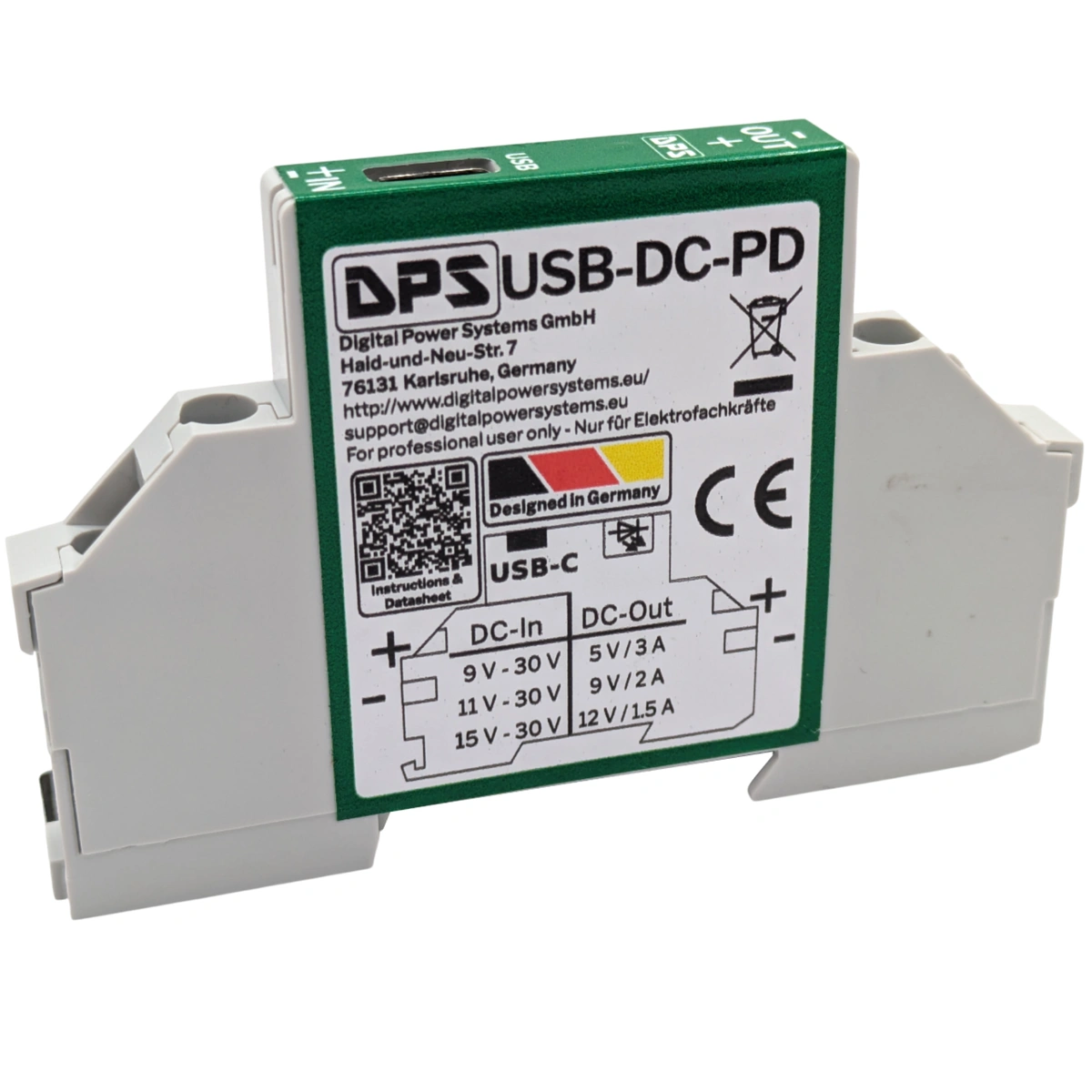

USB-DC-PD
30V 15W USB-C Power Delivery (PD) 5V 9V 12V DIN Rail Charger
| Quantity | Unit Price | Saving |
| 1+ | EUR 26.00 | — |
| 25+ | EUR 22.99 | -12% |
| 100+ | EUR 19.33 | -26% |
| More Quantity, More Savings. Please Quote! | ||
Key Features
- Ultrathin: 8.8mm DIN Rail width
- Electrolytic capacitor free
- USB-PD Supported Levels:
- 5 Vdc - 3 Adc,mac
- 9 Vdc - 2 Adc,mac
- 12 Vdc - 1.5 Adc,mac
- 9 Vdc to 30 Vdc input voltage range
- Output short circuit proof
- Input Reverse Volarity Protection
- Green Power LED
- Low Conducted Emissions
Product Description
Downloads
Logistics Data
| Weight | 0.03 kg |
| Dimensions | 89 x 9 x 58 mm |
| Country of Origin | Germany |
| HS Code | 8504409590 |
Do you need support?
Have a question about this product? Our engineering team is here to help.
Input minimum scales with output: 9 V DC for 5 V PD, 11 V DC for 9 V PD, 15 V DC for 12 V PD. All share a 30 V DC maximum input. The buck topology means input must always exceed output — a 12 V bus cannot produce 12 V PD output.
Three fixed PDO levels: 5 V / 3 A (15 W), 9 V / 2 A (18 W), 12 V / 1.5 A (18 W). Nameplate is 15 W but the 9 V and 12 V profiles deliver up to 18 W. The device is PD-source-only.
Down to -28 V DC (spec table); section 1.2 quotes -30 V. Applying AC to the DC input destroys the device and is classified as misuse with no warranty coverage.
Both are handled without intervention. Indefinite short-circuit protection and indefinite open-circuit safe operation; no power cycle or reset is required after either condition clears.
Typical 93 % / peak 95 % per spec table (overview table cites 92 % peak). The 8.8 mm DIN housing plus electrolytic-cap-free design keeps self-heating low. Rated -40 °C to +50 °C; derating applies at elevated ambient — output current must be reduced to stay inside the thermal envelope.
No — single output rail only. USB-C carries the negotiated PD voltage (5/9/12 V); the O+/O- screw terminals are labelled in the pinout table as a 5 V output. For a guaranteed permanent 5 V bus alongside full-power PD on USB-C, clarify with DPS or add a separate regulator.
Yes — DPS customises input voltage range, PD PDO sets, and output current limits for production volumes. An engineering fee applies; contact DPS to scope your variant.
