HDR20-15-30



HDR20-15-30

230Vac 20W 15V | 24V | 30V AC/DC NoElko Power Supply

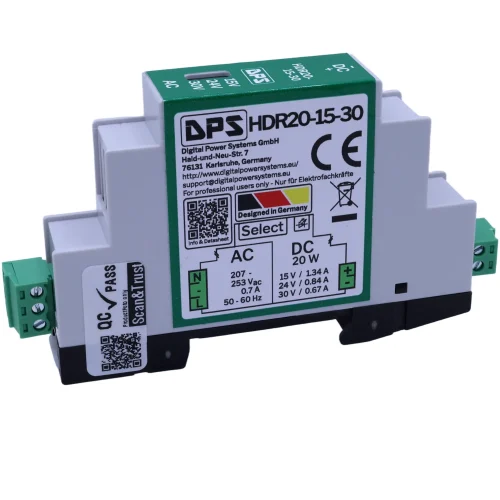

Product Image
Product Image

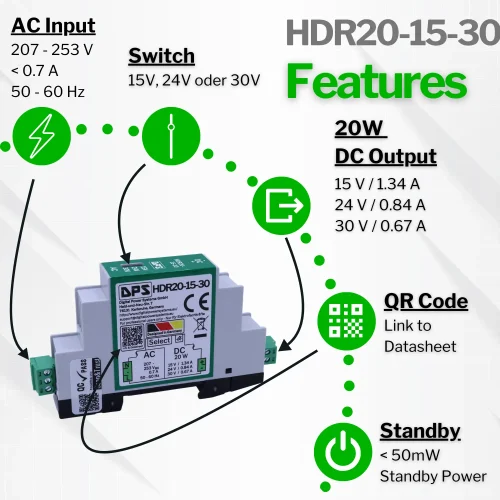

Features EN
Features EN
System Terminal
System Terminal
No Elko Tech
No Elko Tech
Comparison
Comparison

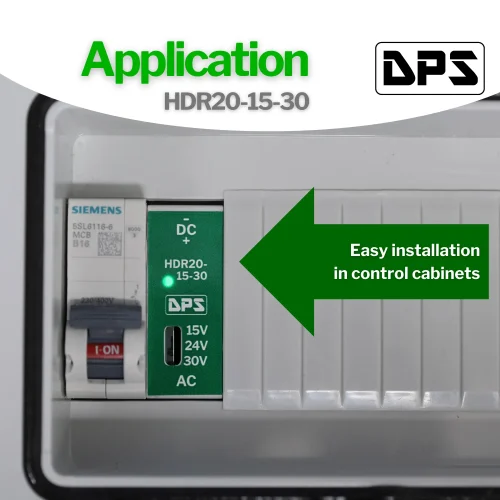

Applciation
Applciation
Dimensions
Dimensions

Features

  • 18mm DIN Rail width
  • <100mW Standby Power @ Vout=24 V
  • High efficiency up to 86%
  • Long life / Electrolytic capacitor free
  • Output Voltage selectable by switch:
    • 15 Vdc – 1.34 Adc,max
    • 24 Vdc – 0.84 Adc,max
    • 30 Vdc – 0.67 Adc,max
  • 207 Vac to 253 Vac input voltage range
  • Output short circuit proof
  • Active output overvoltage Protection
  • Green Power LED

Available from:

[CITYPNG.COM]Black Buy Now On Amazon Store Button - 2000x2000

The HDR20-15-30 is a 230Vac power supply for DIN RAIL control cabinets. The output voltage is selectable by switch to:

  • 15 V @ 1.34 Amax
  • 24 V @ 0.84 Amax
  • 30 V @ 0.67 Amax

Thanks to the no-electrolytic-capacitor (NoElko) technology, exceptional reliability is achieved. An active output overvoltage protection with overheating protection discharges the output under overvoltage conditions.

The device is resilient to typical operating failures: input transient protection, output short circuit, open circuit, moderate input transients and moderate output transients. A green power LED indicates stable operation.

The device may be operated at ambient temperatures between -40°C and 50°C. Derating might be required. The device might emit switching noise when operated in standby.

Downloads

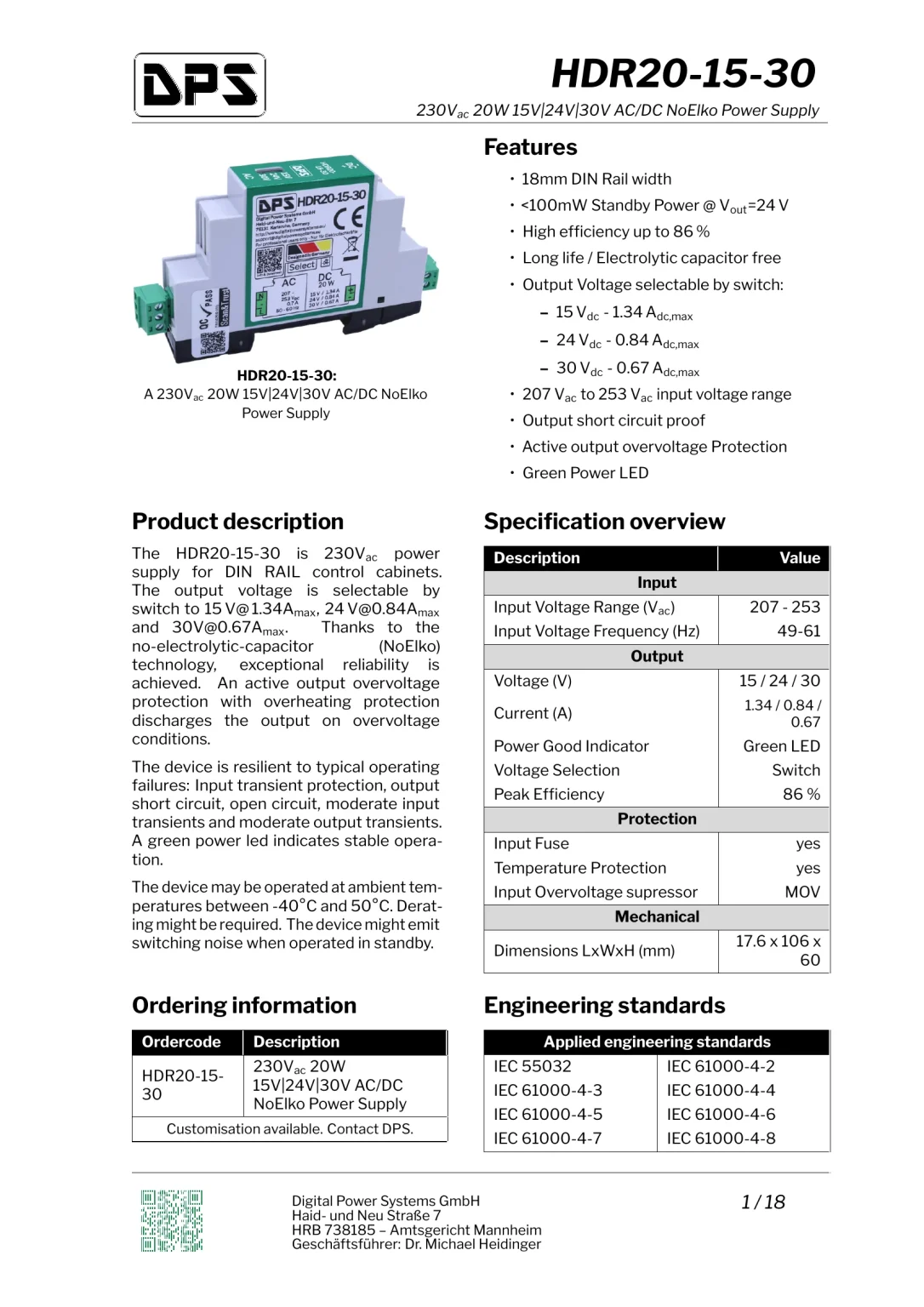

Datasheet

Get Your Free Sample

Would you like to try the HDR20-15-30 yourself? Simply fill out your contact details and apply for a free sample. Please note that samples are available for commercial customers only. Private customers can purchase the product on Amazon or Reichelt.
