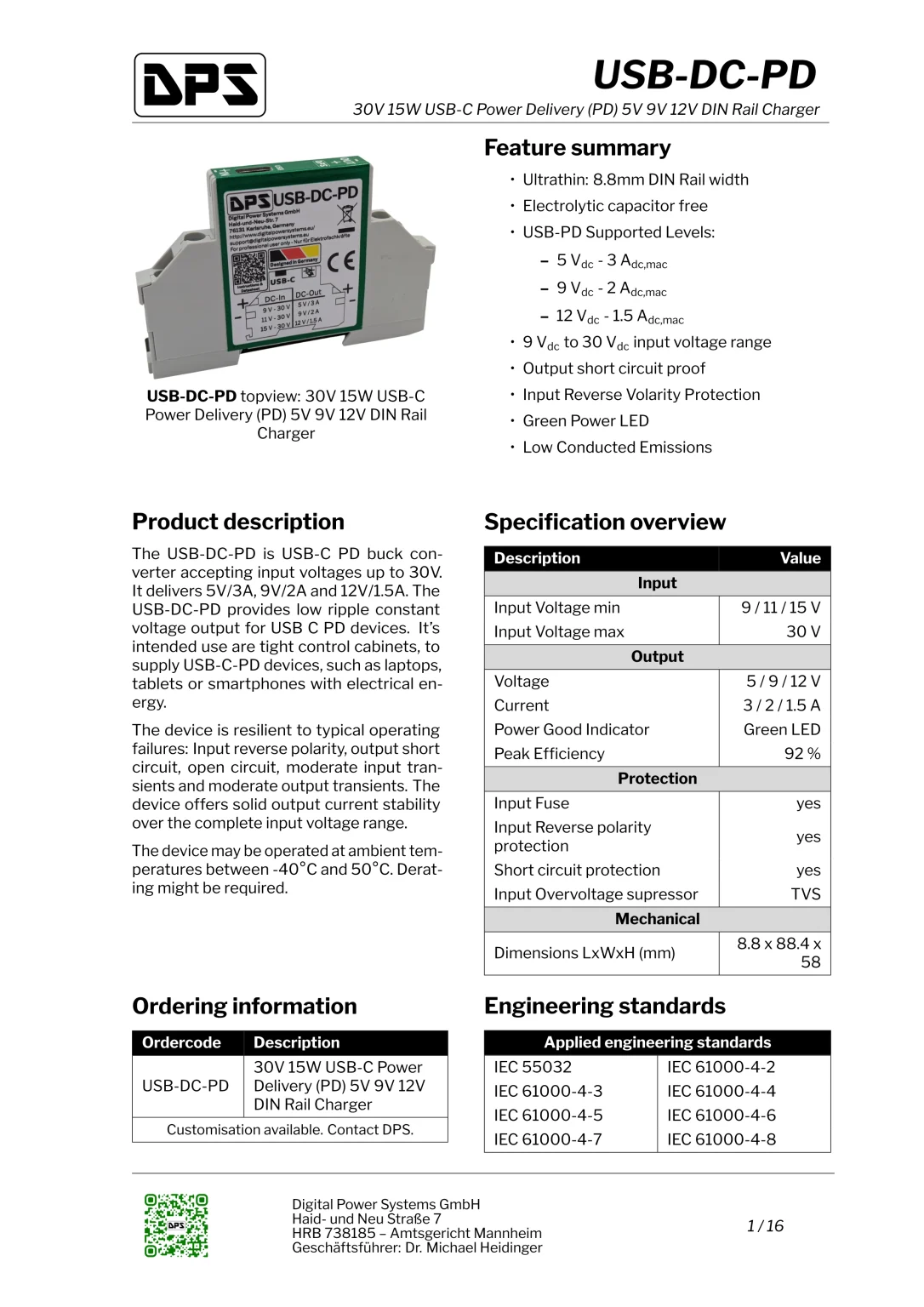

USB-DC-PD

USB-DC-PD

30V 15W USB-C Power Delivery 3.0 (PD) 5V 9V 12V DIN Rail Charger

Feature Summary

  • Ultrathin: 8.8mm DIN Rail width
  • Electrolytic capacitor free
  • USB-PD Supported Levels:
    • 5 Vdc – 3 Adc,max
    • 9 Vdc – 2 Adc,max
    • 12 Vdc – 1.5 Adc,max
  • 9 Vdc to 30 Vdc input voltage range
  • Output short circuit proof
  • Input reverse polarity protection
  • Green Power LED
  • Low Conducted Emissions

Available from:

 Product description

 The USB-C-PD (30V 15W USB-C Power Delivery (PD) 5V 9V 12V DIN Rail Charger) is USB-C PD buck converter accepting input voltages up to 30V. It delivers 5V/3A, 9V/2A and 12V/1.5A. The USB-C-PD provides low ripple constant voltage output for USB-C-PD devices. It’s intended use are tight control cabinets, to supply USB-C-PD devices, such as laptops, tablets or smartphones with electrical energy.

The device is resilient to typical operating failures: Input reverse polarity, output short circuit, open circuit, moderate input transients and moderate output transients. The device offers solid output current stability over the complete input voltage range.

The device may be operated at ambient temperatures between -40°C and 50°C. Derating might be required.

Get Your Free Sample

Would you like to try out the USB-DC-PD for yourself? Fill out your contact details and apply for a free sample.
