CCCV48xx: Ultrathin 8.8mm 48V DIN Rail Constant Current Constant Voltage DC/

CCCV48

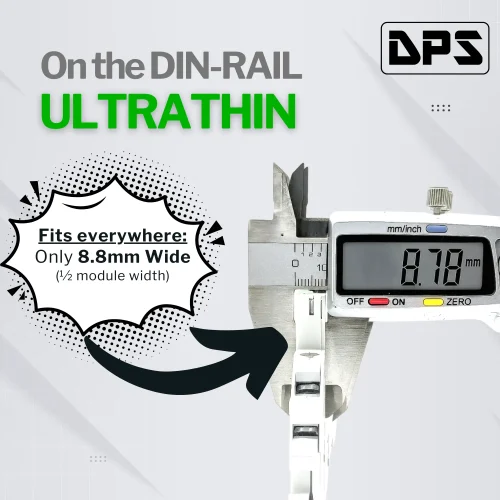

Ultrathin 8.8mm 48V DIN Rail Constant Current Constant Voltage DC/DC

5V
5V
5V
5V
12V
12V
12V
12V
24V
24V
24V
24V

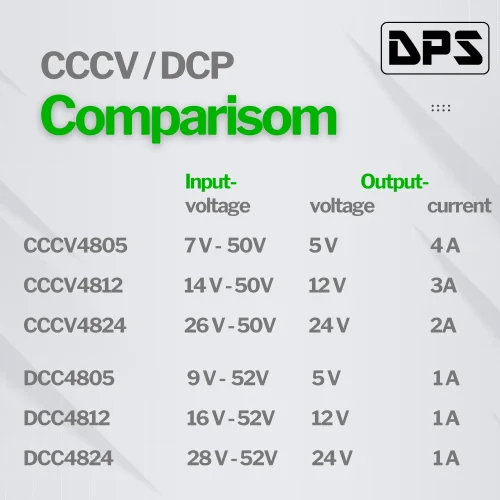

Comparison chart

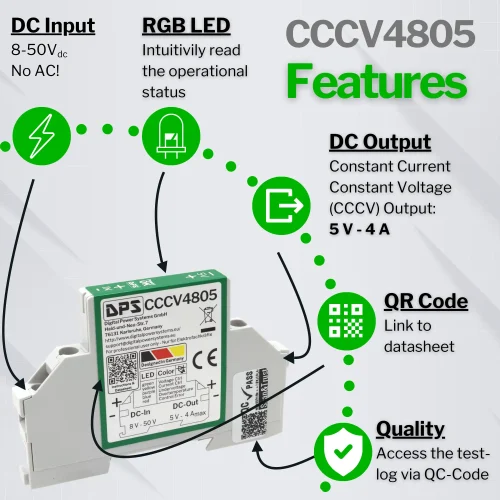

Features:

  • Constant Current Constant Voltage
  • Programmable output voltage range
    (0 V .. 30 V)
  • Programmable output current range
    (0 A to 4 A)
  • Output paralleling possible
  • Internal temperature monitoring with
    Thermal Shutdow
  • Digitally programmable Undervoltage
    Lockout
  • Input reverse polarity protection
  • Output short circuit proof
  • Informative RGB Status indication

Available from:

[CITYPNG.COM]Black Buy Now On Amazon Store Button - 2000x2000
reichelt

 Product description

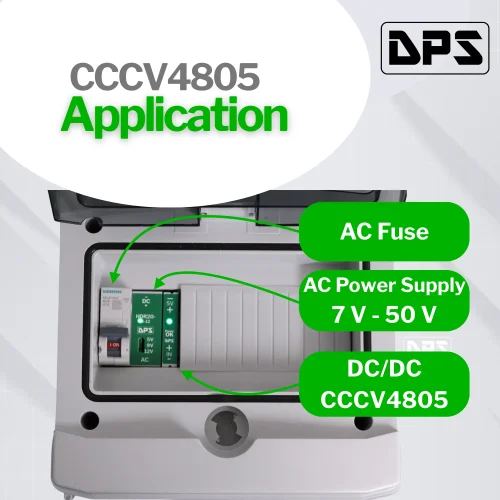

The CCCV48XX is a constant current constant voltage digital-programmable DIN Rail buck converter with perfect output stability. It’s a powerful tool to provide additional lower output voltages in control cabinets. The functional input voltage ranges from 8V to 48V. For more power, outputs can be paralleled. Output voltages and currents are digitally programmable. The input voltage must always be higher than the input voltage.

The device features a universal RGB led, indicating, constant voltage, constant current, undervoltage lockout and overtemperature. The device can be programmed and diagnosed via the MCU-Tracer app, running on Windows and Linux. The device is resilient to typical operating failures: Input reverse polarity, output short circuit, open circuit, moderate input transients. It between -40°C und 50°C. A derating over temperature is required.

Custom Parameters

The CCCV48M is also available pre-programmed according to your custom parameters. We charge €150 plus VAT for programming and a sample unit. Please fill out the sample request form below.

Too expensive? The DCP48M can be programmed by yourself.

Downloads

Datasheet

Did you know?

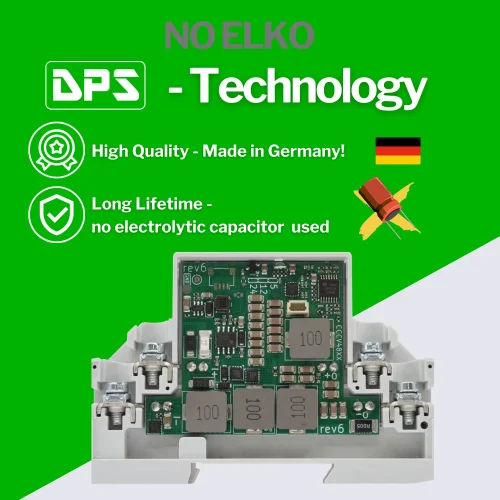

The CCCV48 is a fully digital buck switching regulator controlled by an especially energy-efficient RISC-V microcontroller.

By programming it, the CCCV48M can be flexibly adapted to your specific application.

Get Your Free Sample

Do you want to try out the CCCV48XX yourself? Fill out your contact details and apply for a free sample. Samples are only available for comercial customers. Private customers may buy over Amazon.
